DUO 30/35 Hook Connectors
DUO 30/35 Hook Connectors
Hook-in Stair Hardware | Handrail Connector
The DUO Hook Connector is commonly used to attach handrails by simply hooking them together. DUO consists of two identical round shaped steel brackets that hook into each other in a dovetail-like manner. It comes in two sizes, 30 mm and 35 mm, both two different versions. DUO mL = with sideways tolerance (+/- 1/8″) and the DUO oL = without sideways tolerance.
First, install your connectors to the components and then simply slide them into place. The DUO 35 fastener is installed to the component with Euro-screws, is ideal for the industrial use with a CNC-routing machine and especially suited to mount windows on site.
Features and Benefits:
- Simple – easy to mount by just snapping components in place.
- Non-visible – recessed and concealed fasteners.
- Efficient – reduces labor costs.
- Low recess depth – only 3 mm (1/8″).
- Versatile – two sizes: DUO 30 = ø 30 mm and DUO 35 = ø 35 mm
- Two versions – mL (with sideways tolerance) and oL (without sideways tolerance)
- Fast – only 15 mm (9/16″) hook way and can be used with standard screws.
The DUO 30 and DUO 35 hook connectors come in 30 and 35 mm and consist of two identical round shaped steel brackets that hook into each other in a dovetail-like manner. They form a stable load-bearing connection immediately after screwing and hooking together the parts. They can be simply installed using the KNAPP® Forstner Bit with our custom adjustable depth gauge.
Because of the bracket’s round shape, it can be easily fitted into a ∅ 30 mm x 3 mm recess. Utilizing the DUO Center Punch you can mark the wall and/or counterpart at the exact spot where the connection is to be made.
DUO 30 = 30 mm in diameter. DUO 35 = 35 mm in diameter.
DUO mL = with sideways tolerance of 1/8+ (1,7 mm). DUO oL = without sideways tolerance
Features and Benefits:
-
-
Fast assembly
- Components are simply hooked together in seconds
- Reduces labor and equipment cost
-
Non-visible connector
- Appeals to the architect and customer
-
Fast assembly
-
Self-tightening
- Can be disassembled if needed
- The DUO 30 mm can be used with a Locking Clip making the connection permanent
-
Versatile
- Low recess depth of 3 mm
- Two sizes ø = 30 mm and 35 mm
- Two versions mL and oL (with and without sideways space)
- Can be used with standard screws
- Hooking way 15mm
- Attach components flush, 3 mm, or 6 mm away
Tips:
- Perfect for industrial manufacturing with CNC
- Used with all wood and board materials
- For the DUO 35, Euro-screws are recommended
- For the DUO 30, CS-screws are recommended
Applications:
- Wall Panels
- Stair Treads
- Windows and doors
- Architectural Millwork
- Shopfitting
- Furniture Material

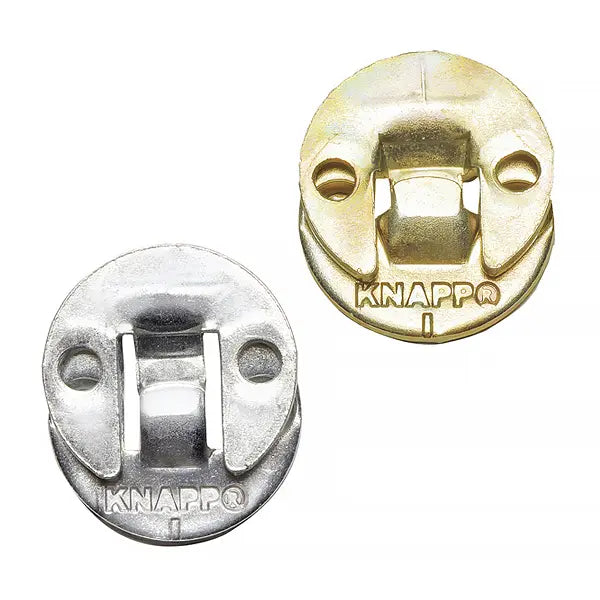

Steel – Zinc plated
DUO mL – Blue galvanized,
DUO oL – Yellow galvanized
Hook-in connector
Screw-in with CS-screws (DUO 30) Euro-Screw 6×10 mm (DUO 35)
Concealed, self-tightening, demountable connector
Using our KNAPP Forstner Bit with adjustable depth stop, drill a ø = 30 or 35 mm hole, 3 mm deep. Install with CS screws.
All woods and board materials
Wall panels, cabinet end panels, ceiling panels, handrails.
